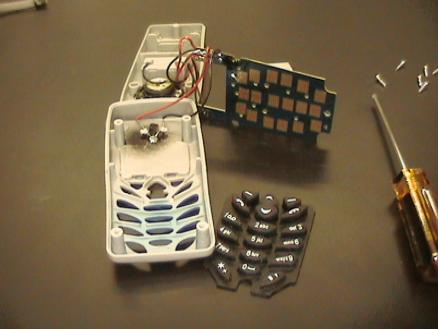

Here we see the button board. Each rubber pad segment hides a conductive disk that connects each side of the button area, completing the circuit and sending a signal to the chip. You can also see the LED and speaker, which are affixed snugly to the case (for now.)
